L71W41CL
DESCRIPTION SPEAKER
SPEAKER SPECIFICATION

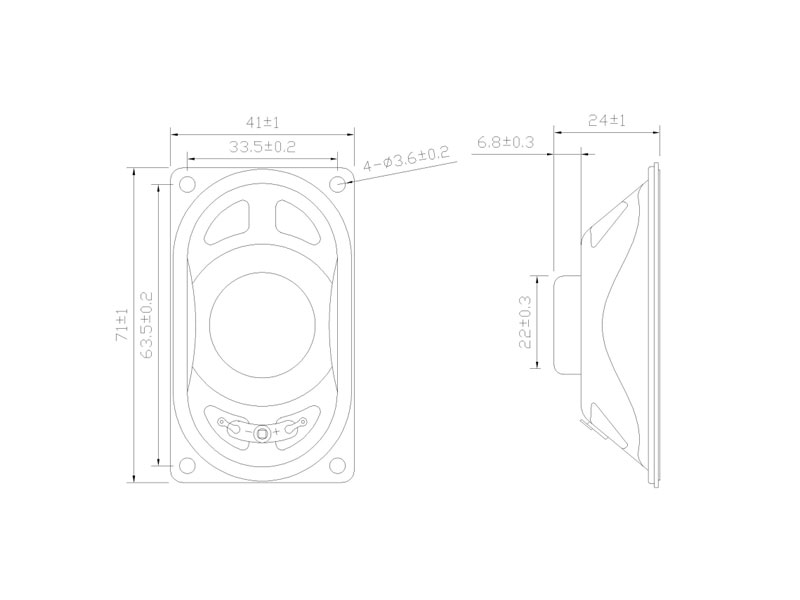

| Outer Dimensions | 71*41 mm(See attached drawing) |
| Rated (Max.)Input | 10 W (W) |
| Voice Coil Imp. | 6 ± 9 Ω ( 1000 Hz 1 V ) |
| Lowest Resonance Frequency ( fo ) | 420 ± 84 Hz ( 1 V ) |
| Sound Pressure Level | 95 ± 3 dB ( 0.1 w 0.1 m ) at(1.0)(1.2)(1.5)(2.0)KHZ |
| Frequency Response Deviation | FO Hz ~ 20 KHz max -10 dB |
| Operating temperature | -20 +50 ± 2 ℃ Hours 2 0 ~ 5 0 % R.H. |
| Load test | White noise at 10 W 48 hours |
| Weight | 36 g |
Other non-stipulated matters are based on CNS4784 4785 4786 based on JIS.C. 5530 5531
FREQUENCY RESPONSE CURVE(7*18)
