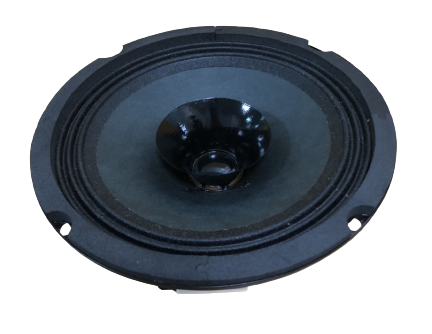

165R-A-FG
SPEAKER SPECIFICATION

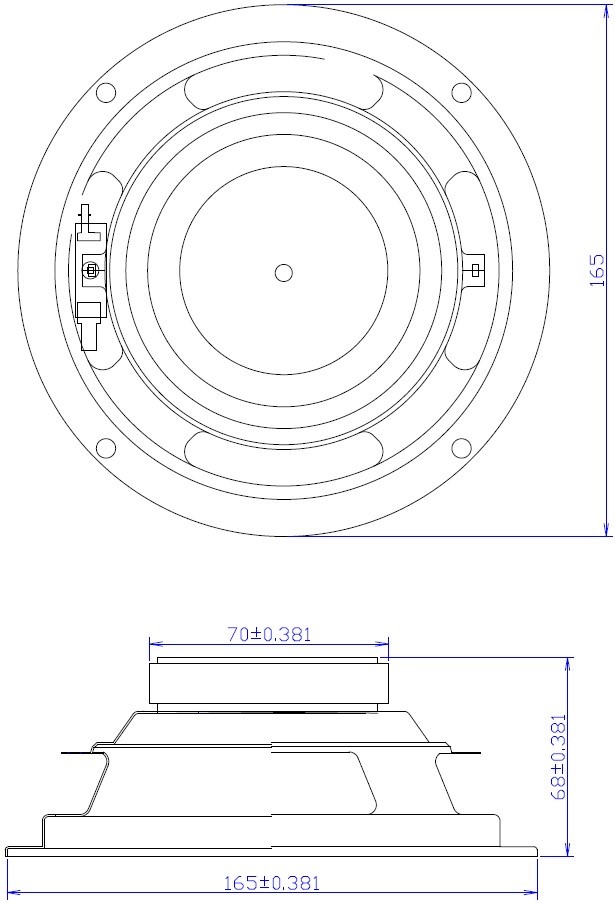

| Outer Dimensions | 165mm |
| Rated (Max.)Input | 40 W |
| Voice Coil Imp. | 4 ± 0.6 Ω ( 300 Hz 1 V ) |
| Lowest Resonance Frequency ( fo ) | 95 ± 19 Hz ( 1 V ) |
| Sound Pressure Level | 97 ± 2 dB ( 0.1 w 0.5 m ) at(0.6)(0.8)(1.0)(1.2)KHZ |
| Frequency Response Deviation | 25dB max. ( fo 65 HZ - 15 K Hz ) -10 dB |
| Operating temperature | -20 +70 ± 2 ℃ Hours 2 0 ~ 5 0 % R.H. |
| Load test | White noise at 40 W 72 hours |
| Weight | 603 g |
Other non-stipulated matters are based on CNS4784 4785 4786 based on JIS.C. 5530 5531

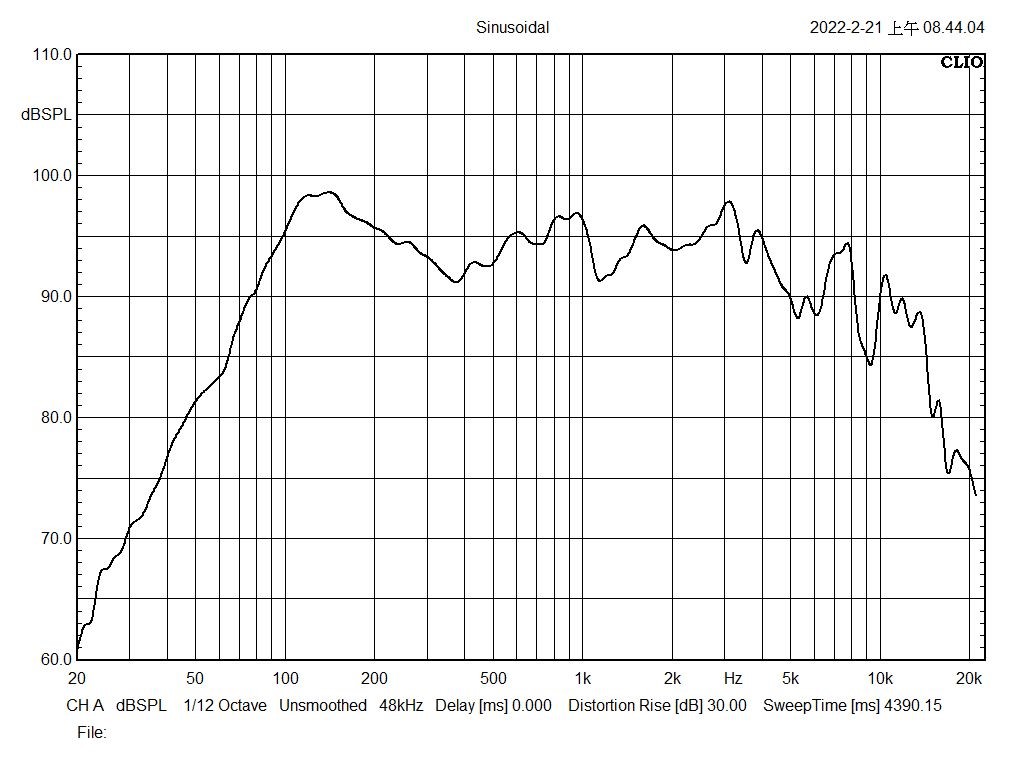

FREQUENCY RESPONSE CURVE(7*18)
