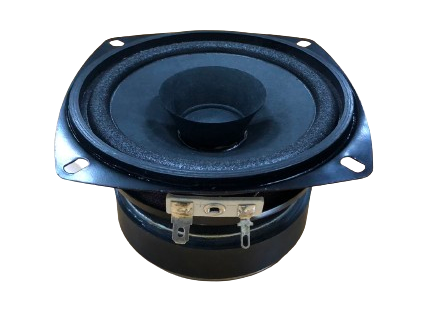

105S-C-IN
SPEAKER SPECIFICATION

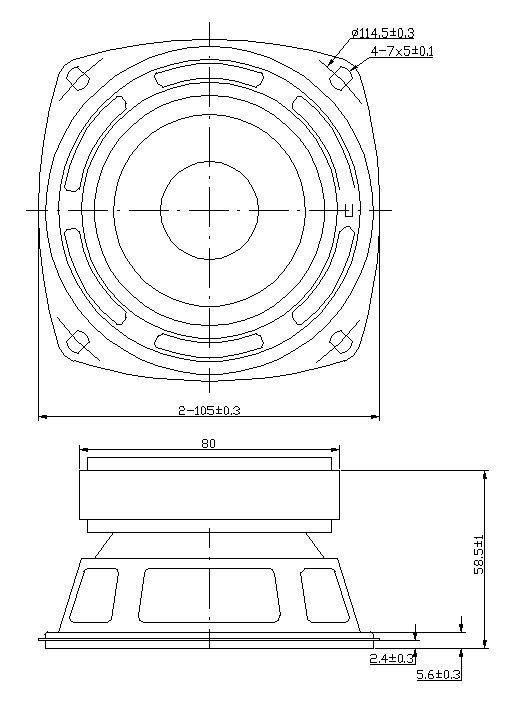

| Outer Dimensions | 105mm |
| Rated (Max.)Input | 30 W |
| Voice Coil Imp. | 6 ± 0.9 Ω ( 400 Hz 1 V ) |
| Lowest Resonance Frequency ( fo ) | 120 ± 24 Hz ( 1 V ) |
| Sound Pressure Level | 91 ± 3 dB ( 1 w 1 m ) at(0.6)(0.8)(1.0)(1.2)KHZ |
| Frequency Response Deviation | 25dB max. ( fo 65 HZ - 15 K Hz ) -10 dB |
| Operating temperature | -20 +70 ± 2 ℃ Hours 2 0 ~ 5 0 % R.H. |
| Load test | White noise at 30 W 72 hours |
| Weight | 660 g |
Other non-stipulated matters are based on CNS4784 4785 4786 based on JIS.C. 5530 5531

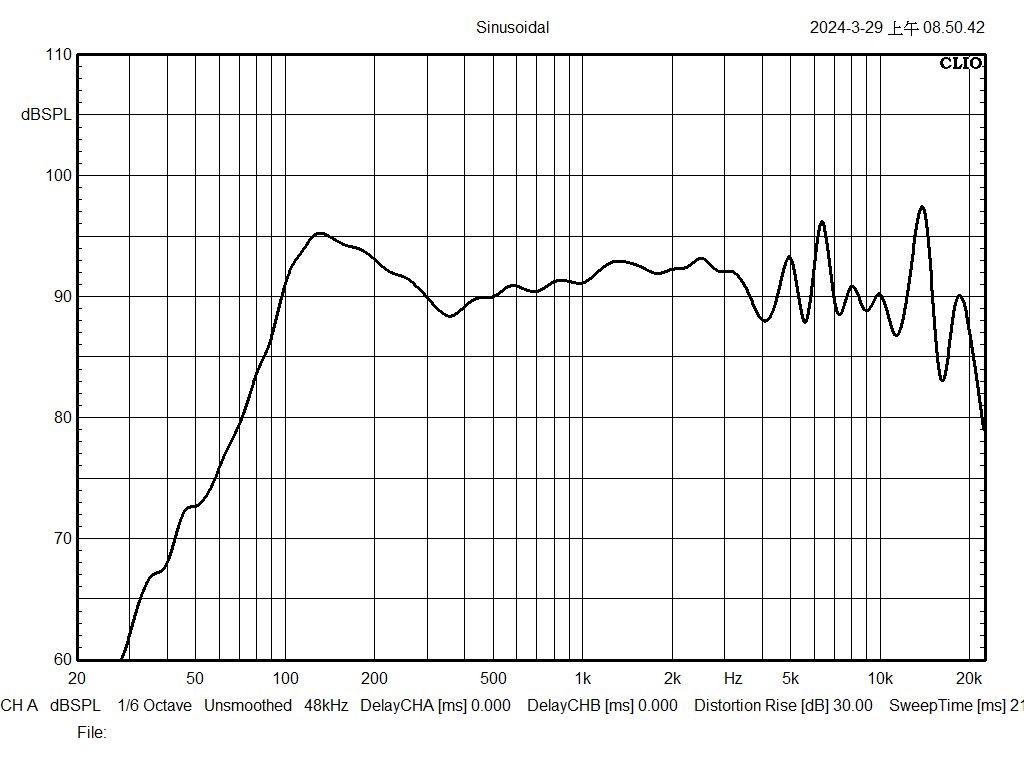

FREQUENCY RESPONSE CURVE(7*18)
