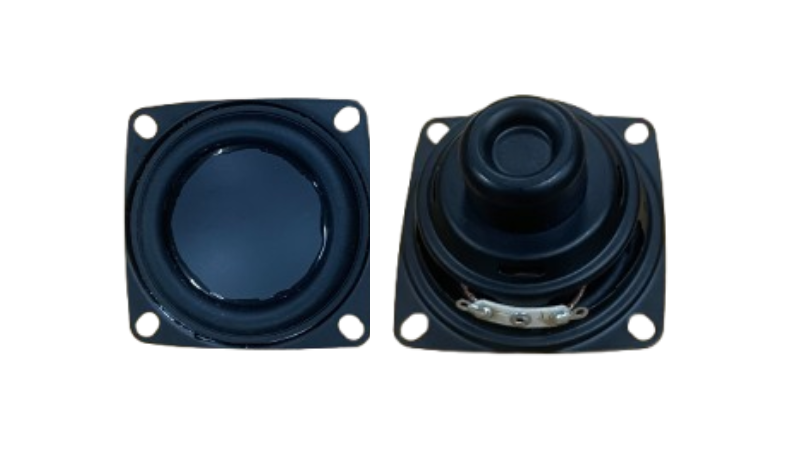

53S-A2-WZ
DESCRIPTION SPEAKER
SPEAKER SPECIFICATION

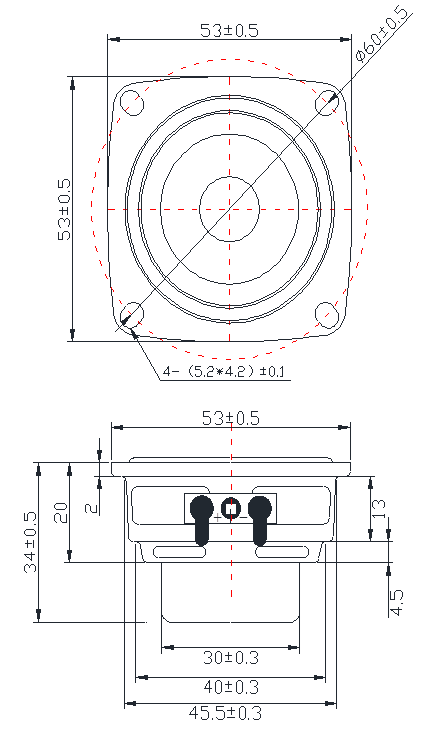

| Outer Dimensions | 53 mm(See attached drawing) |
| Rated (Max.)Input | 10 W (15W) |
| Voice Coil Imp. | 4 ± 15% Ω ( Hz V ) |
| Lowest Resonance Frequency ( fo ) | 80 ± 20% Hz ( 1 V ) |
| Sound Pressure Level | ± dB Average at Hz at Vrms,m |
| Frequency Response Deviation | FO 10 Hz ~ 5 KHz max -10 dB |
| Operating temperature | -20 +70 ± 2 ℃ Hours 2 0 ~ 5 0 % R.H. |
| Load test | White noise at 0.1 W 48 hours |
| Weight | 28.5 g |
Other non-stipulated matters are based on CNS4784 4785 4786 based on JIS.C. 5530 5531

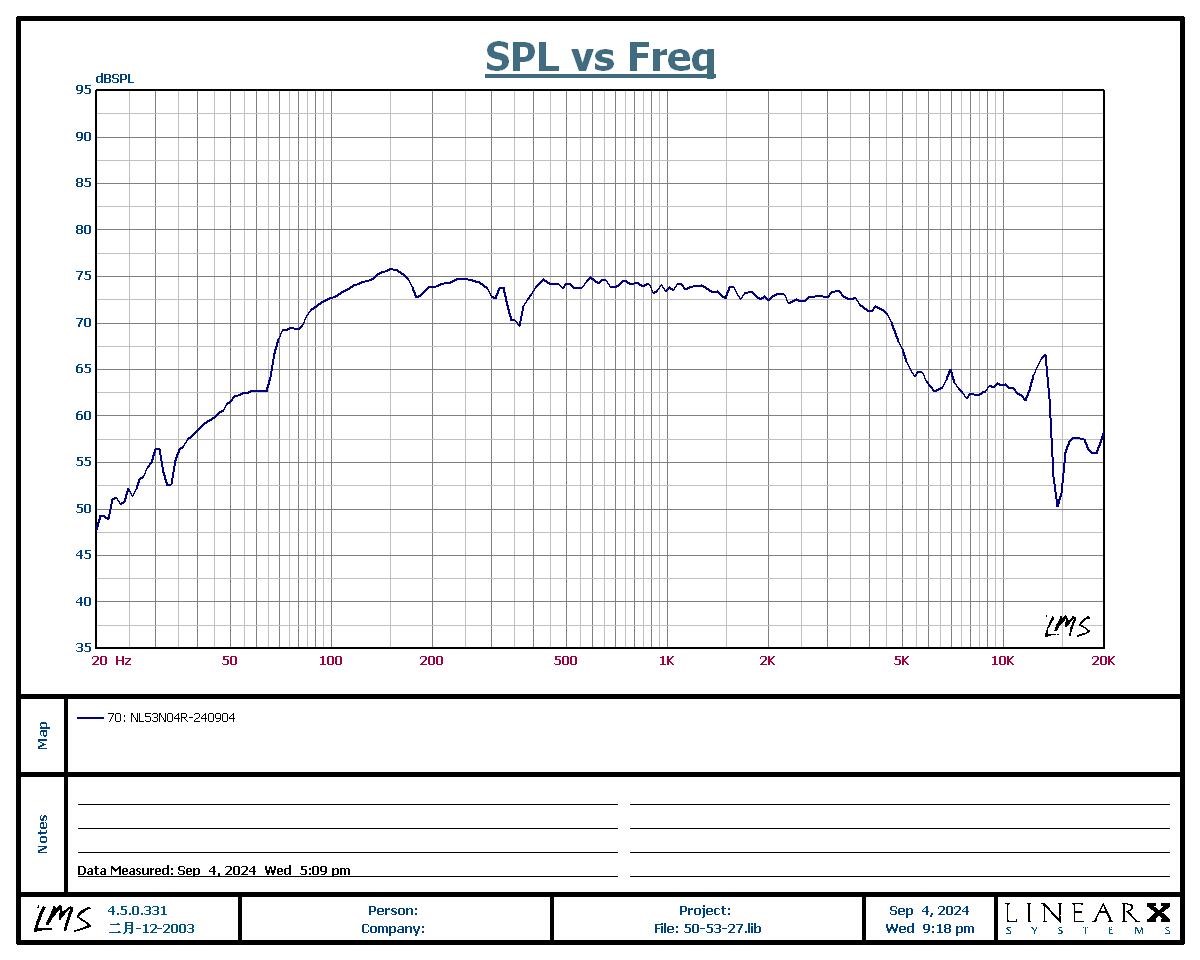

FREQUENCY RESPONSE CURVE(7*18)
