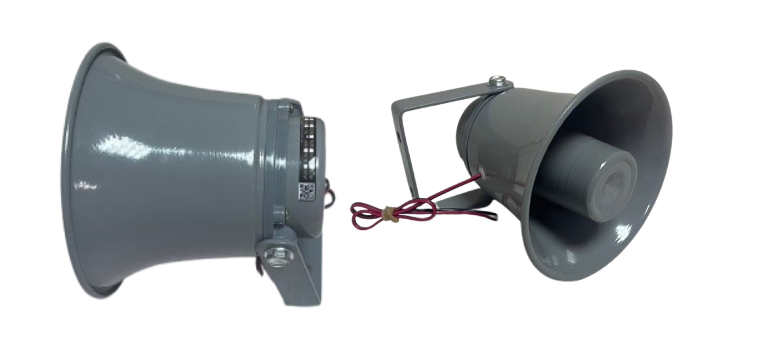

HS-16-WZ

ITEMS

S P E C I F I C A T I O N

1

Outer Dimensions

16*16*16cm

2

Rated (Max.)Input

30W

3

Voice Coil Imp.

8± 15%

4

Lowest Resonance Frequency ( fo )

200-3500 Hz

5

Sound Pressure Level

90-105 dB   (  w m ) {( 1)(1.2)(1.5)(2) kHz}

6

Frequency Response Deviation

  dB    max.   ( fo    K Hz  )-10dB

7

Flux Density

± 10 % Gauss

8

Polarity

When a positive D.C current is applied to the voice coil terminal marked " +".  The diaphragm shall move forward.

9

Sine wave

V

10

Weight

900g

11

Magnet

Positive Magnetic:   mm (oz    ) Diamagnetic:  mm(oz    )

12

Room temperature Life

W     Hours  (at normal temperature and humidity )

13

Heat Resistance

70   ± 2  ℃   72   Hours 20-50      %  RH

14

Humidity Resistance

40   ± 2  ℃   72   Hours 90-95      %  RH

15

Cold Resistance

–20  ± 2  ℃   72   Hours

Other matters not specified shall be based on CNS4784 4785 4786 and JIS.C. 5530 5531
