50R-TA

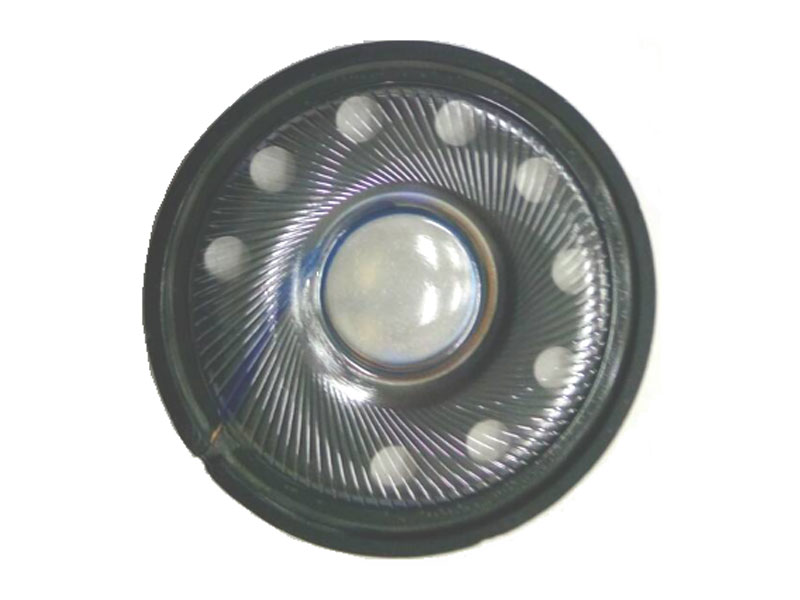

DESCRIPTION SPEAKER
SPEAKER SPECIFICATION

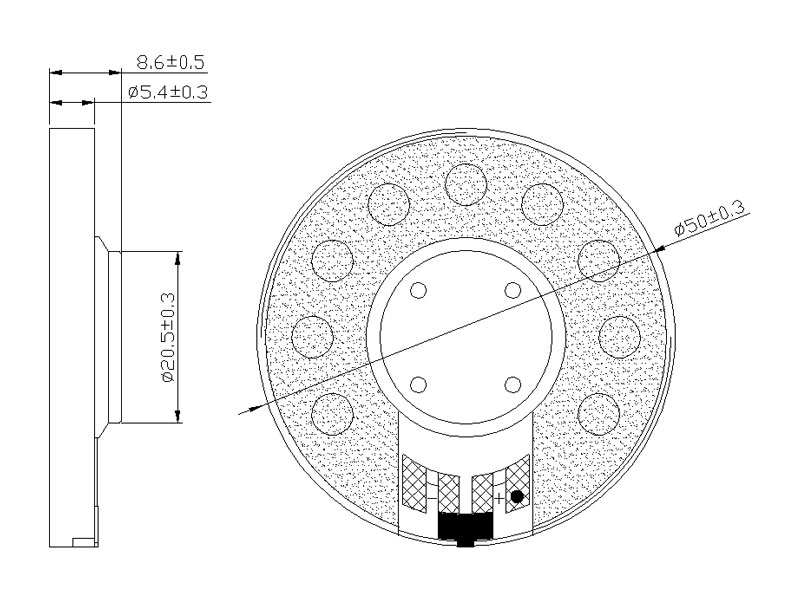

| Outer Dimensions | 50 mm(See attached drawing) |
| Rated (Max.)Input | 0.03 W (0.1W) |
| Voice Coil Imp. | 32 ± 4.8 Ω ( 5000 Hz 0.178 V ) |
| Lowest Resonance Frequency ( fo ) | 95 ± 19 Hz ( 1 V ) |
| Sound Pressure Level | 112 ± 3 dB Average at 1000 Hz at 0.178Vrms,0.01m |
| Frequency Response Deviation | FO 75Hz ~ 20 KHz max -10 dB |
| Operating temperature | -20 +70 ± 2 ℃ Hours 2 0 ~ 5 0 % R.H. |
| Load test | White noise at 0.1 W 48 hours |
| Weight | 14 g |
Other non-stipulated matters are based on CNS4784 4785 4786 based on JIS.C. 5530 5531

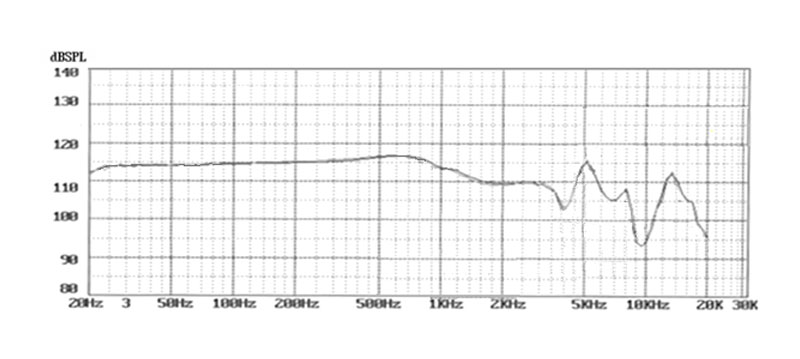

FREQUENCY RESPONSE CURVE(7*18)
