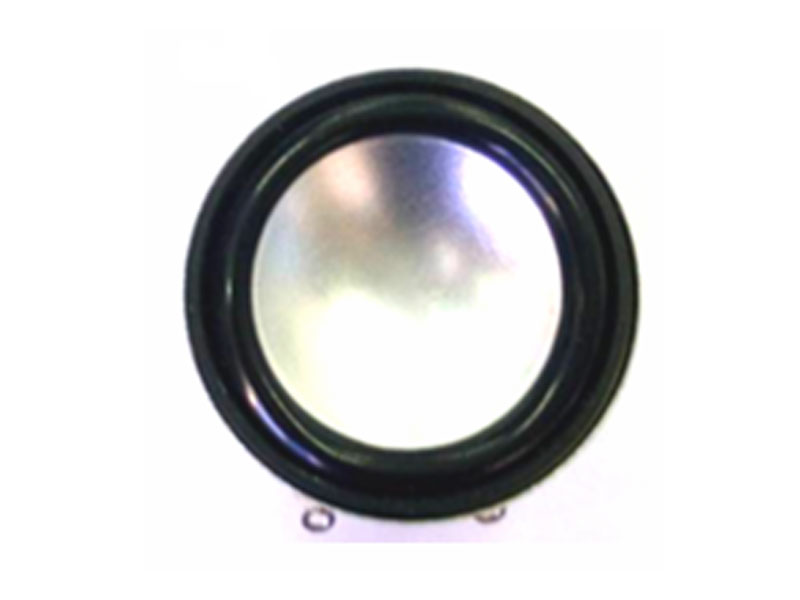

36R-TA
DESCRIPTION SPEAKER
SPEAKER SPECIFICATION

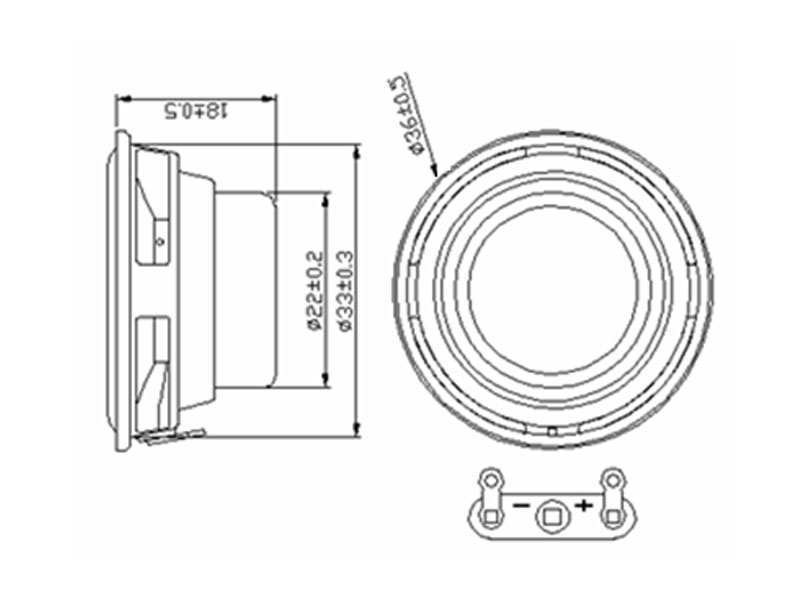

| Outer Dimensions | 36 mm(See attached drawing) |
| Rated (Max.)Input | 2 W (3W) |
| Voice Coil Imp. | 6 ± 0.6 Ω ( 1000 Hz 1 V ) |
| Lowest Resonance Frequency ( fo ) | 200 ± 40 Hz ( 1 V ) |
| Sound Pressure Level | 77 ± 2 dB ( 1 w 1 m ) at(0.4)(0.6)(0.8)(1.0)KHZ |
| Frequency Response Deviation | FO 150Hz ~ 20 KHz max -10 dB |
| Operating temperature | -20 +70 ± 2 ℃ Hours 2 0 ~ 5 0 % R.H. |
| Load test | White noise at 3 W 48 hours |
| Weight | 22 g |
Other non-stipulated matters are based on CNS4784 4785 4786 based on JIS.C. 5530 5531
FREQUENCY RESPONSE CURVE(7*18)
