0815L-BOXL(33W39)-AS
DESCRIPTION SPEAKER
SPEAKER SPECIFICATION

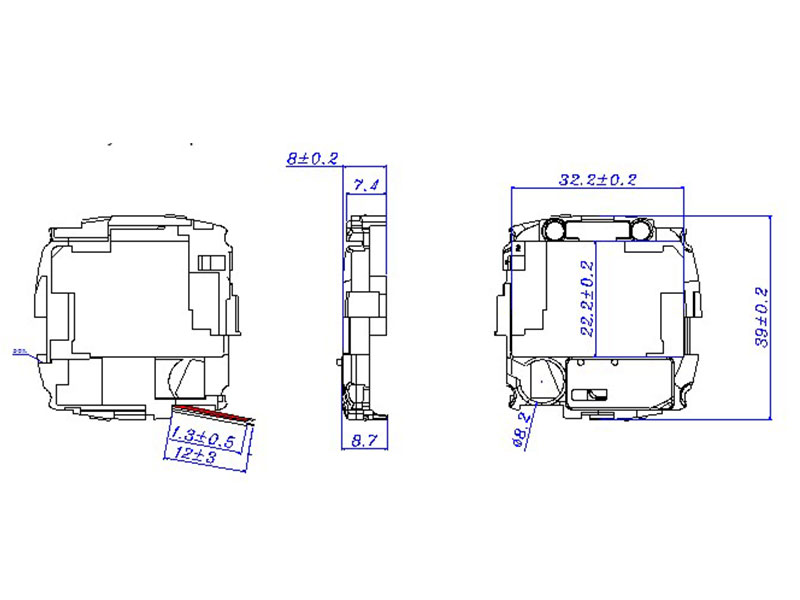

| Outer Dimensions | 32.2*39内装8*15 mm(See attached drawing) 智慧手机使用 |
| Rated (Max.)Input | 0.5W (0.8W) in 1cc box |
| Voice Coil Imp. | 6 ± 1.2 Ω ( 1000 Hz 1 V ) |
| Lowest Resonance Frequency ( fo ) | 1500 ± 300 Hz ( 1 V ) |
| Sound Pressure Level | 85 ± 2 dB ( 0.1 w 0.1 m ) at(2.0)(3.0)(4.0)(5.0)KHZ |
| Frequency Response Deviation | FO Hz ~ 20 KHz max -10 dB |
| Operating temperature | -20 +50 ± 2 ℃ Hours 2 0 ~ 5 0 % R.H. |
| Load test | White noise at 1.0 W 48 hours |
| Weight | 2.35 g |
Other non-stipulated matters are based on CNS4784 4785 4786 based on JIS.C. 5530 5531

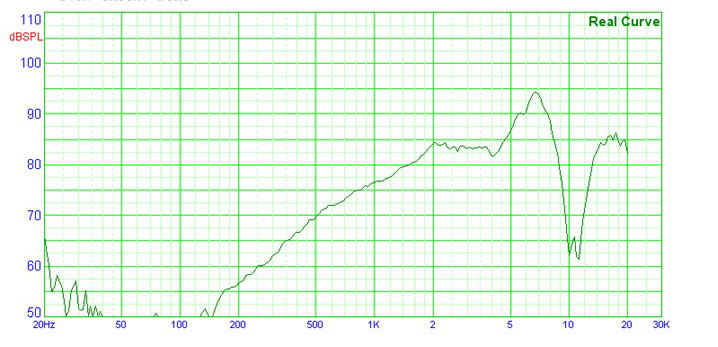

FREQUENCY RESPONSE CURVE(7*18)
