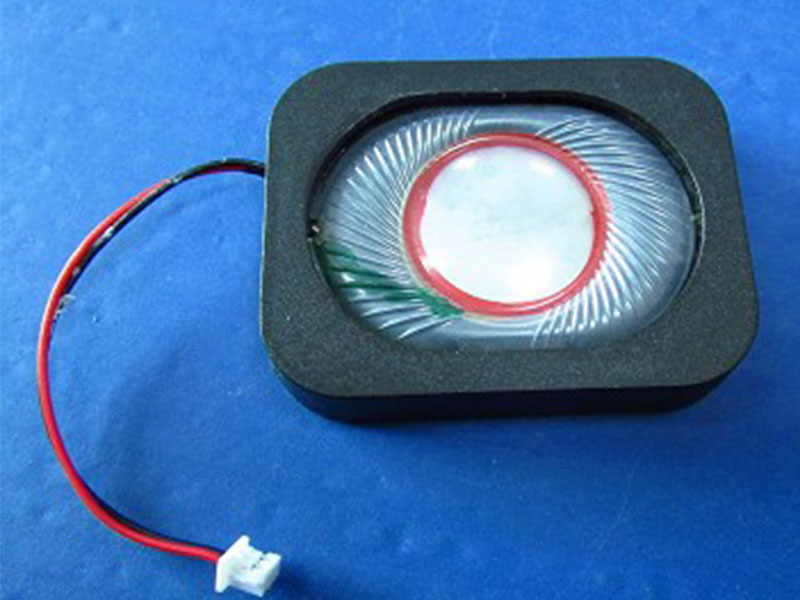

3040L-BOXL(30W40)-AS
DESCRIPTION SPEAKER
SPEAKER SPECIFICATION
| Outer Dimensions | 30*40 mm(See attached drawing) |
| Rated (Max.)Input | 3.0 W (3.2W) |
| Voice Coil Imp. | 4 ± 0.6 Ω ( 1000 Hz 1 V ) |
| Lowest Resonance Frequency ( fo ) | 320 ± 64 Hz ( 1 V ) |
| Sound Pressure Level | 99 ± 2 dB ( 0.1 w 0.1 m ) at(1.0)(1.2)(1.5)(2.0)KHZ |
| Frequency Response Deviation | FO Hz ~ 20 KHz max -10 dB |
| Operating temperature | -20 +50 ± 2 ℃ Hours 2 0 ~ 5 0 % R.H. |
| Load test | White noise at 3.0 W 48 hours |
| Weight | 12.8 g |
Other non-stipulated matters are based on CNS4784 4785 4786 based on JIS.C. 5530 5531

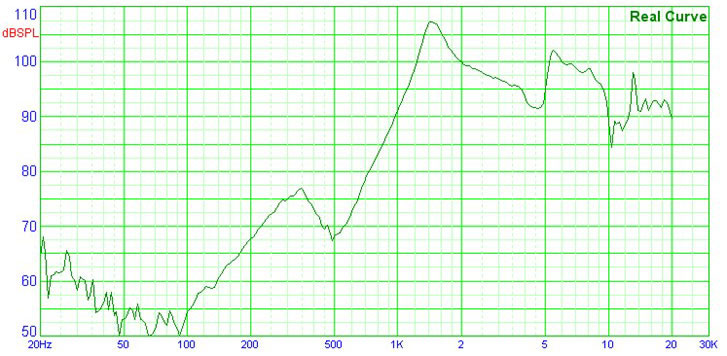

FREQUENCY RESPONSE CURVE(7*18)
