BOXL400W100-04L
DESCRIPTION SPEAKER
SPEAKER SPECIFICATION

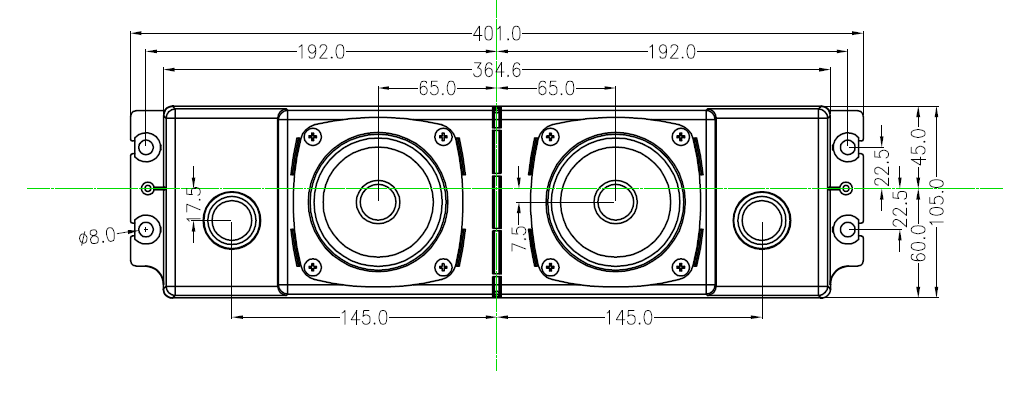

| Outer Dimensions | 400*100 mm(See attached drawing) |
| Rated (Max.)Input | 15 W ( W) |
| Voice Coil Imp. | 4 ± 0.6Ω ( 300 Hz 1 V ) |
| Lowest Resonance Frequency ( fo ) | 85 ± 17Hz ( 1 V ) |
| Sound Pressure Level | 83± 3 dB ( 1 w 1 m ) at (0.5) (0.6) (0.8) (1.0) kHz |
| Frequency Response Deviation | FO Hz ~ 8 KHz max -10 dB |
| Operating temperature | -20 +70 ± 2 ℃ Hours 2 0 ~ 5 0 % R.H. |
| Load test | White noise at 15 W 48 hours |
| Weight | 695 g |
Other non-stipulated matters are based on CNS4784 4785 4786 based on JIS.C. 5530 5531
FREQUENCY RESPONSE CURVE(7*18)
