BOXL68W32-08L

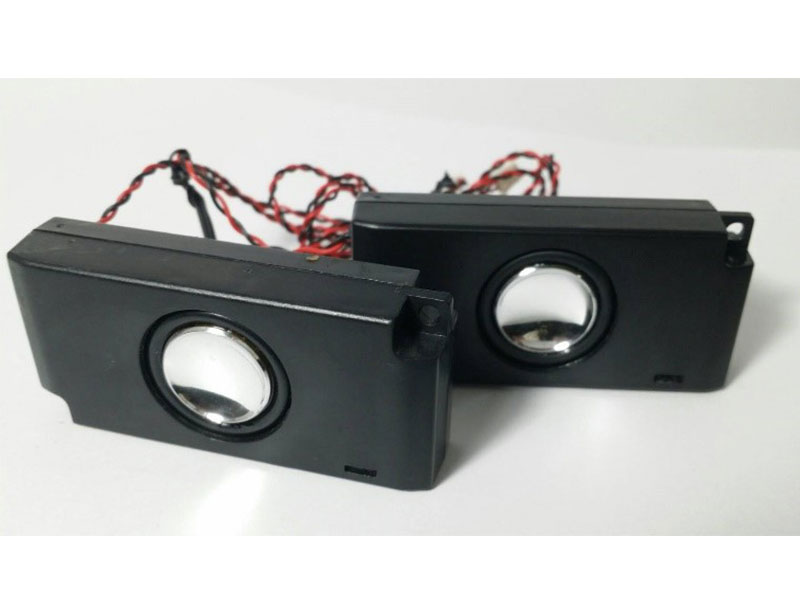

DESCRIPTION SPEAKER
SPEAKER SPECIFICATION

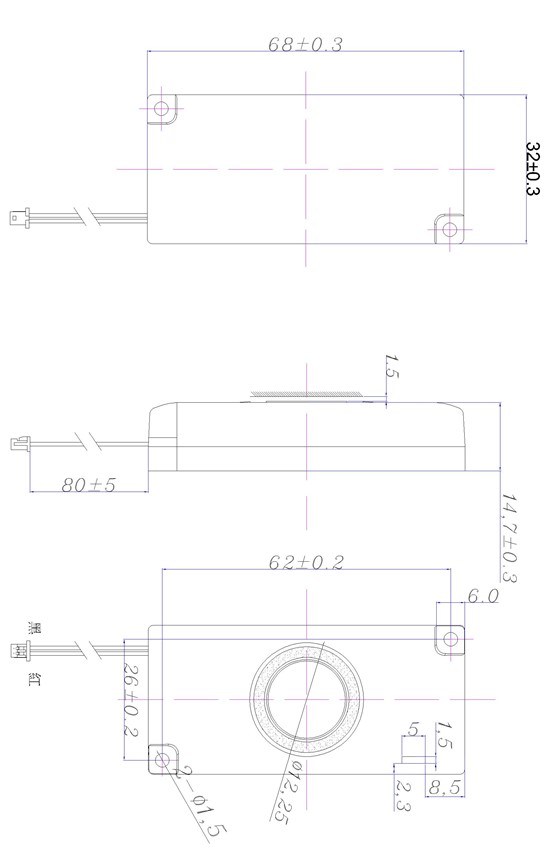

| Outer Dimensions | 68*32 mm(See attached drawing) |
| Rated (Max.)Input | 3 W (5W) |
| Voice Coil Imp. | 8 ± 0.9 Ω (1400Hz 1 V ) |
| Lowest Resonance Frequency ( fo ) | 500 ± 100 Hz ( 1 V ) |
| Sound Pressure Level | 97± dB ( 1 w 0.1 m ) at(0.8) (1.0) (1.2) (1.5) kHz |
| Frequency Response Deviation | FO Hz ~ 20 KHz max -10 dB |
| Operating temperature | -20 +70 ± 2 ℃ Hours 2 0 ~ 5 0 % R.H. |
| Load test | White noise at 2 W 48 hours |
| Weight | 26 g |
Other non-stipulated matters are based on CNS4784 4785 4786 based on JIS.C. 5530 5531
FREQUENCY RESPONSE CURVE(7*18)
